BMW E36 52mm Console Gauge Face | 3MF + STL Files

Overview

This digital download includes a prepared 3MF file and matching STL geometry for printing a clean BMW E36 52 mm console gauge face for auxiliary gauge integration.

It is designed for builders who want useful engine data without adding a universal gauge pod that looks disconnected from the original E36 interior.

No universal gauge pod. No improvised console cutout. No unfinished aftermarket look.

What You Get

• Prepared .3MF file plus matching .STL geometry for the selected console gauge face version, or all three files with the All Faces option
• Prepared orientation and recommended baseline print settings
• Geometry tuned for fitment, strength and surface quality

Available Face Options

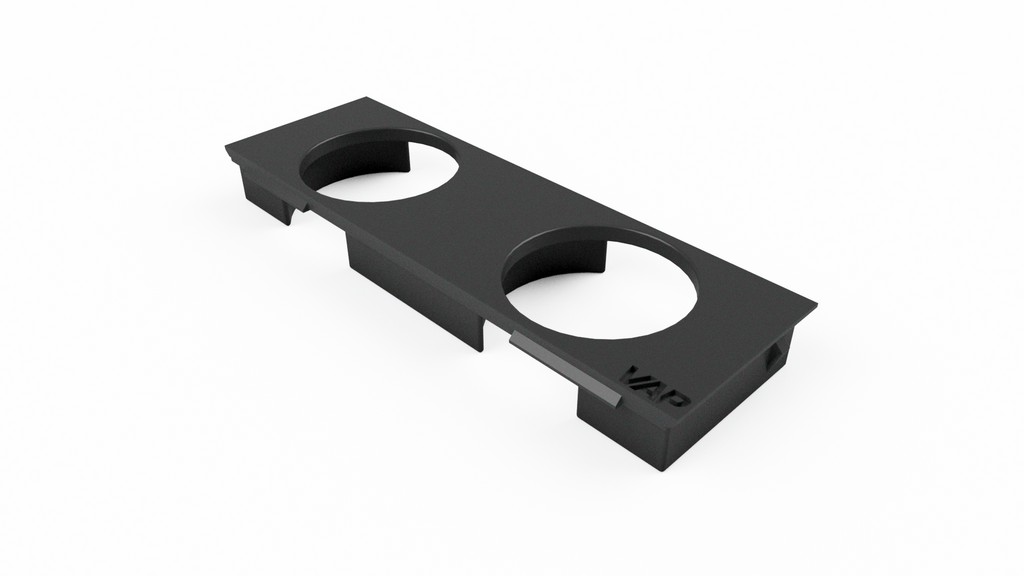

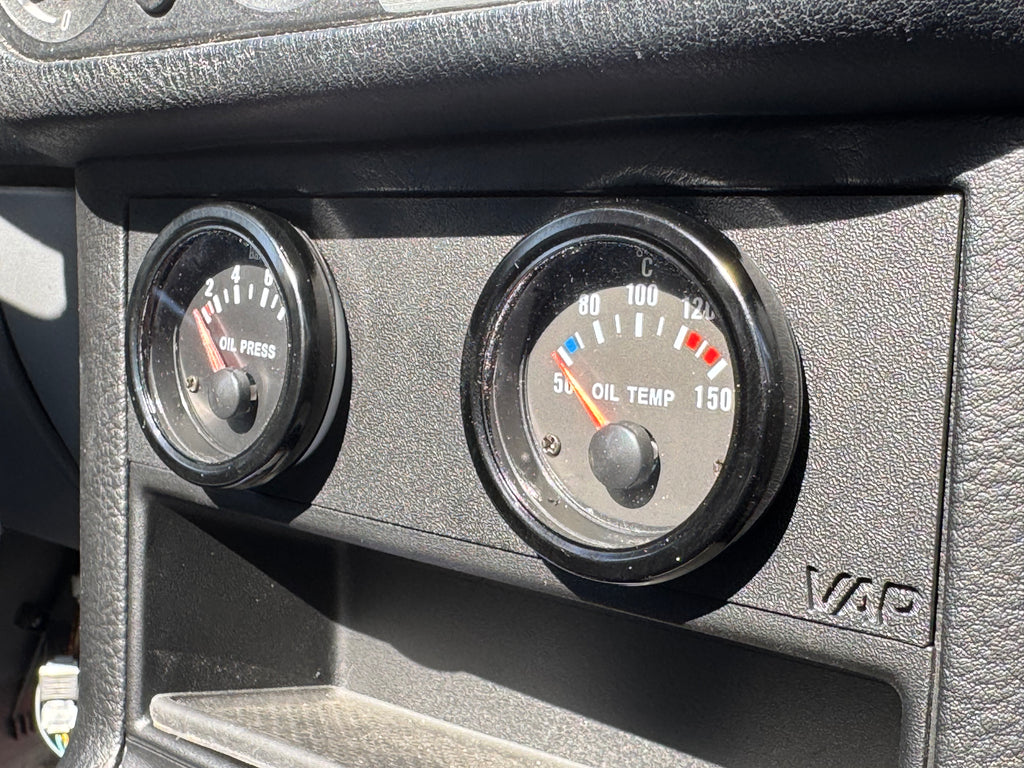

• 2×52 mm Gauge Face: for two standard auxiliary gauges

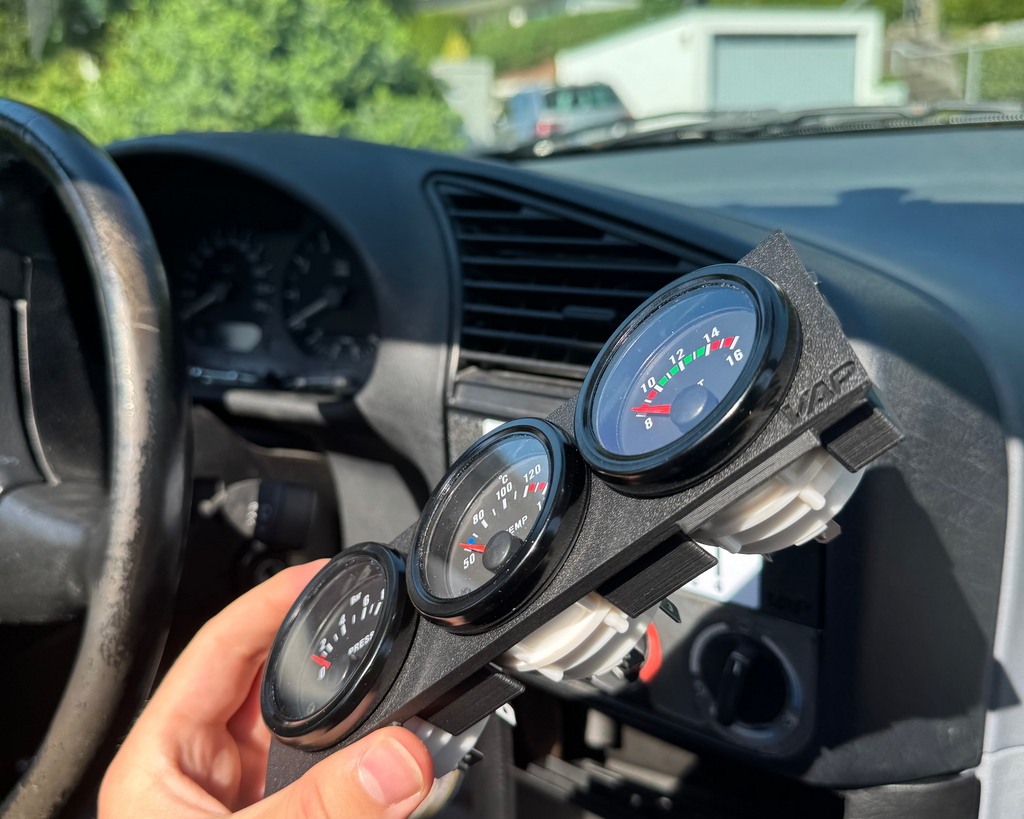

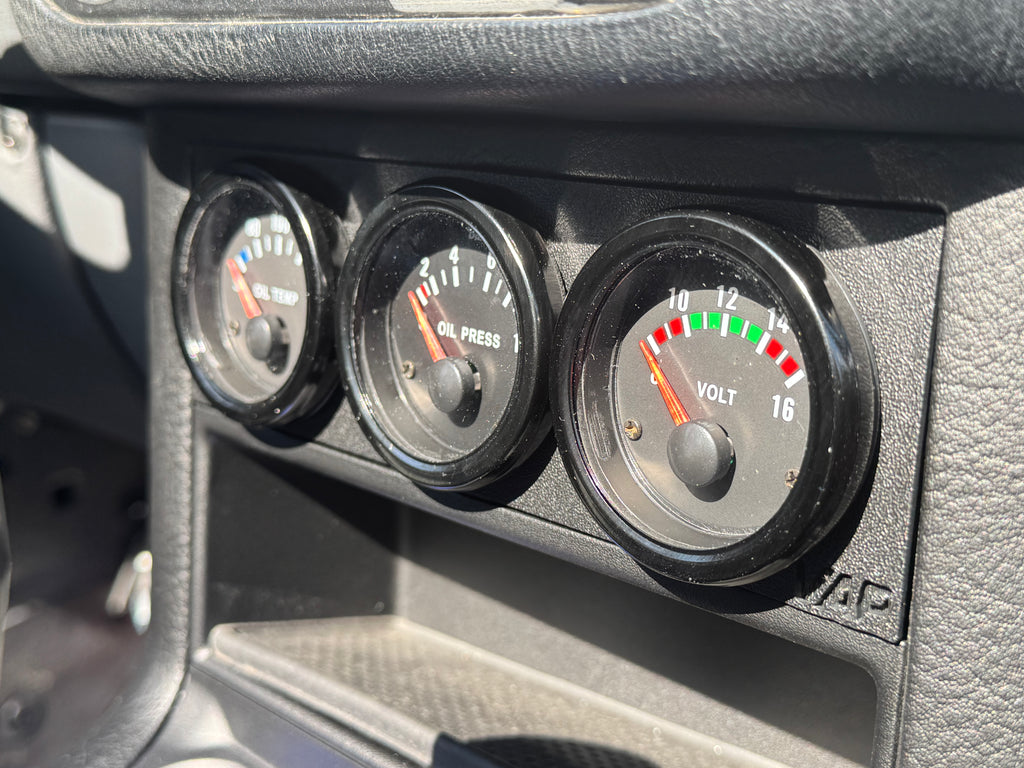

• 3×52 mm Gauge Face: for three-gauge performance or track layouts

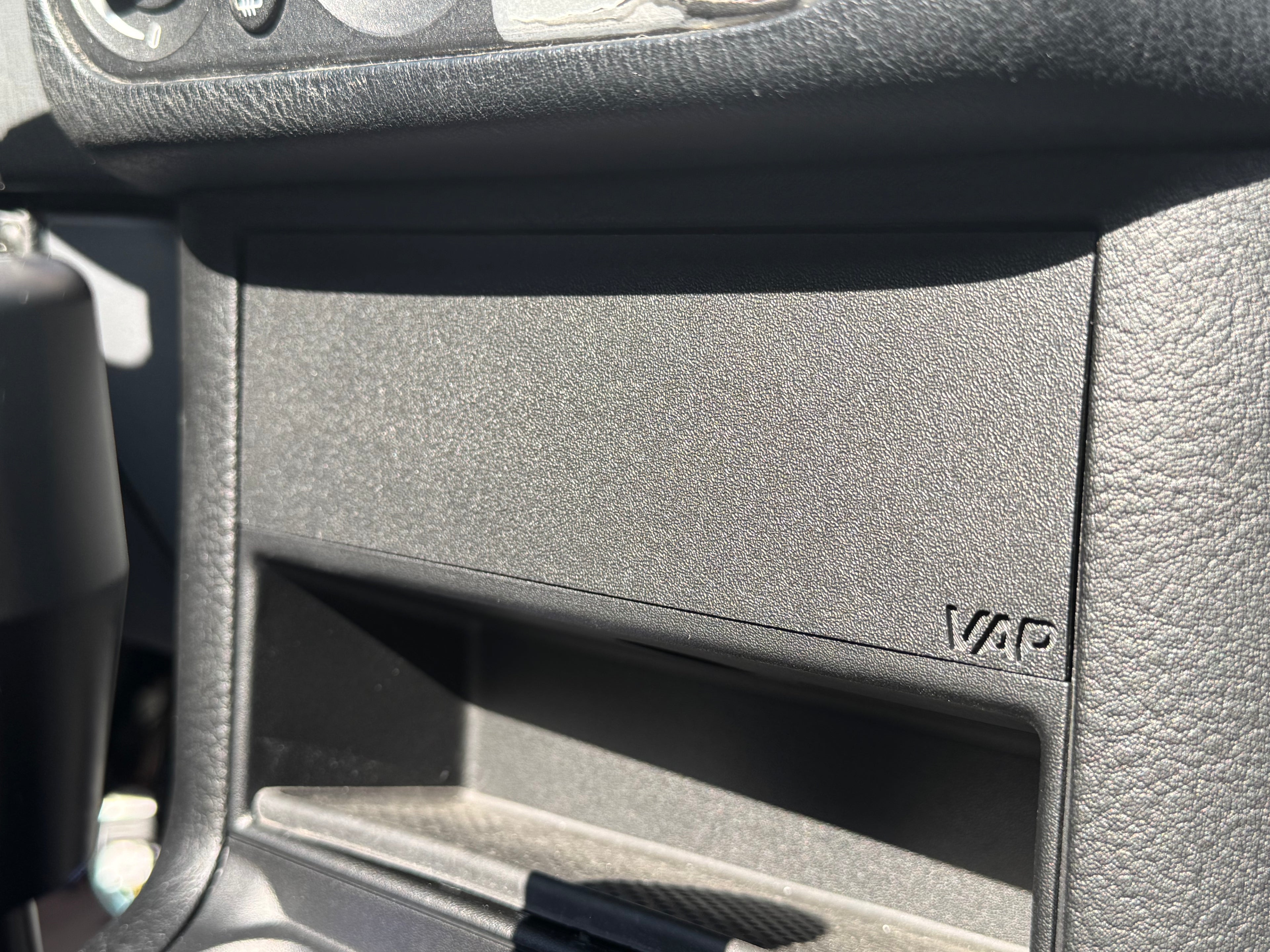

• Blank Face: for clean delete-style or custom console setups

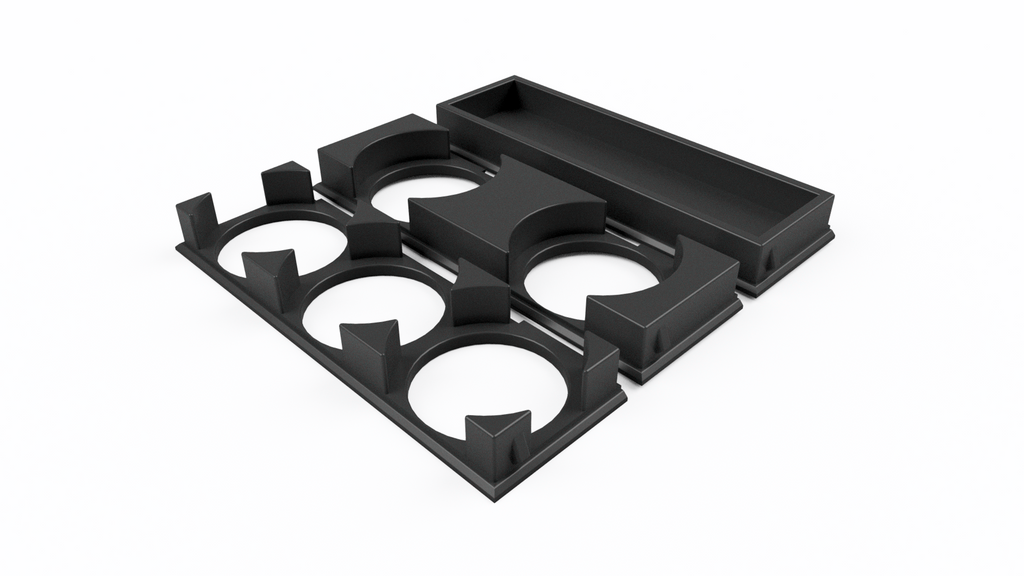

• All Faces: includes the 2×52 mm, 3×52 mm and Blank Face files as one complete set

Fitment

Designed for compatible BMW E36 center console configurations. Interior trim geometry may vary depending on body style, production year, trim version, previous repairs and prior modifications.

The gauge openings are designed around standard 52 mm auxiliary gauges, but gauge fitment may vary between manufacturers. Test-fit your gauges before final installation.

Material & Printing

• Recommended: ASA for balanced heat resistance and automotive interior use
• Premium option: ASA-CF for increased stiffness and a technical surface finish
• Also suitable: PETG for easier printing and moderate interior temperatures
• Not recommended: PLA due to limited heat resistance inside parked vehicles

Designed for FDM printing and optimized for enclosed printers such as the Bambu Lab P1S. Recommended layer height: 0.16–0.20 mm. Use sufficient wall loops around gauge openings, mounting areas and thin visible edges.

Installation Notes

• Test-fit the printed part in the vehicle before final assembly.
• Test-fit all gauges in the printed openings.
• Check rear clearance for gauge bodies, wiring and angled connectors.
• Do not force gauges into the printed openings.
• Do not install if rear clearance or wiring routing is insufficient.

Use Cases

• OEM+ BMW E36 interiors
• Oil temperature and oil pressure monitoring
• Track and performance setups
• Motorsport-inspired cockpit layouts
• Replacement for improvised gauge panels or universal mounts

Important Notes

• This is a digital product. No physical item is included.
• The download includes both 3MF and STL files for the selected face option. The All Faces option includes both formats for every included face.
• Gauges, wiring, sensors, adhesives, mounting hardware and tools are not included.
• Surface texture and appearance depend on material, build plate and print settings.
• Test-fit before paint, coating or permanent finishing.

Why Both Formats?

The 3MF version preserves the prepared orientation, component positioning and recommended baseline print settings for the intended VAP workflow. The matching STL file contains the same printable geometry for broad slicer compatibility and independent print preparation.

VAP Approach

Digital first. Platform specific. Built around real vehicle geometry. Designed to remove visual noise. Built to fit. Built to function.

BMW and E36 are used for identification and compatibility purposes only. VAP is not affiliated with or endorsed by BMW AG.
